Hybrid USB 3.1 Gen 2 AOC-Active Optical Cable-Type A to Micro B-10m(33ft)
04/10/2023
4k HDMI 2.0 Armored AOC-Active Optical Cable Drum 50m
- Durable Aluminum/Steel Construction, Under 25 Lbs;
- Protection Caps included;
- Unparalleled 4K 60Hz definition;
- Maximum 240Hz ideal for immersive entertainment;
- Optical / Electrical solution for lossless transmission;
- 18Gbps bandwidth;
- Easy-grip zinc-alloy housing and gold-plated connectors
The BHDC-20D-XX serires 4K HDMI 2.0 Armored AOC-Active Optical Cable supplied in a portable Fiber Optic Cable drum for broadcasting tactical field application. The cable drum frame is made from robust PC (Polycarbonate) with integrated handle and brake, while the drum is made from a special PE composite materials with detachable cable feeder, which has features of:
- Durable Aluminum/Steel Construction, Under 25 Lbs;
- Stackable Frame Design;
- Protection Caps Included;
- Thread Existing SMPTE & opticalCON Cables with Connector Removal;
- Designed for Tactical Fiber, SMPTE Hybrid Fiber & opticalCON Cables;
- Quality Metal Construction Withstands Harsh Outdoor Environments;
- Non-Reflective Black Matte Finish;
- External and/or internal drum storage with Protective Rubber Grommet for Easy Access to Cable & Fan Out;
- Crank Handle Permanently Attached to Disc;
- Equipped with 3-Position Cam-lock Drag Brake System;
- Up to 100m maximum length(30m max. for eARC );
- Custom length,logo,packaging available;
They are made of high quality hybrid optical fiber cable(4 Fiber & 7 Cooper) with up to 18Gbps Ultra High Speed and 4K@60Hz resolutions signals without signal loss. By utilizing BONES’ unique AOC+™ technology, the 4K HDMI Fiber AOC Cables enable conversion between input signals and optical signals for optimum high bandwidth data transmissions and 100 meters maximum transmission length (30m for supporting eARC).
This EMI-resistant optical cable fully supports 18Gbps signal bandwidth and 4K@60Hz YUV 4:4:4 video resolution. It is the ideal solution for extending the reach of your digital signage in various settings, such as Blu-ray players, set top boxes, game consoles, monitors for large shopping malls and hospital facilities etc.The optical solution ensures the mass signal will be transmitted in a lossless way even long distance.
Applications:
- Remote video production and broadcasting
- Field deployment in abusive environments
- Temporary installation of critical communication lines where quick retrieval and reuse is necessary
- High-traffic areas
- Security and sensing applications Installations in harsh environments available
- Ideal for installation through conduit and other tight spaces.
- Digital signage
- LED signs & monitors for stadiums,hospitals,shipping malls
- Medical imaging equipment
- Airport boarding video information system
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
- Radio and TV station
- Video conference equipment
- Security monitoring system
Technical Specifications:

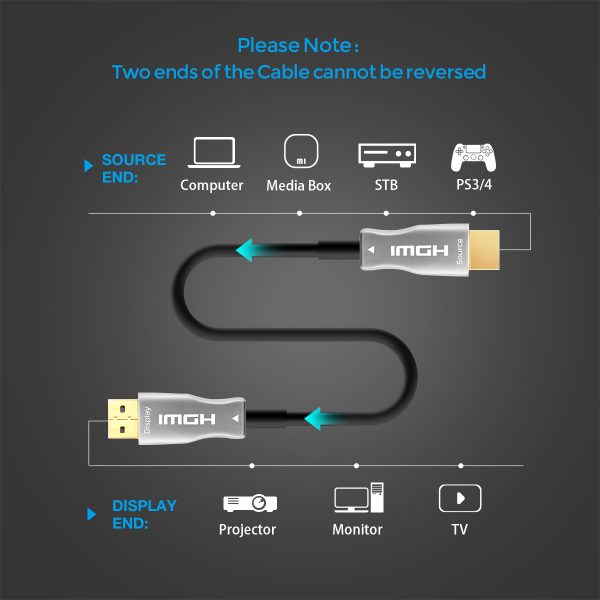

| Item | Description | |
| Units | Transmitter (Source) | Receiver ( Display) |
| HDCP | HDCP2.2 Fully Support bi-directional EDID and HDCP communication | |
| Video Bandwidth | 6 Gbps /x3Channel (max)+ Clock. | |
| Supported
Resolution & Distance |
HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters | |
| O/E Converter | 4 channel 850 nm array | 4 CH GaAs PD array |

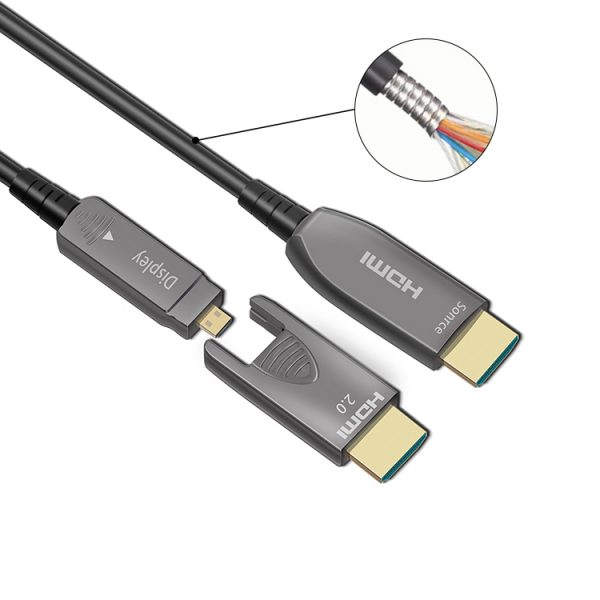

| Connector Type | HDMI type D with HDMI D/Female to HDMI A/Male Adaptor | |
| Connector Dimension
(W x D x H) |
Type D: 44.2mm x 12.7mm x 7.1mm
Type A : 48.2mm x 20mm x 10mm Pulling Tool: 55.2mm x 17.5mm x 13mm |
|
| Cable Length | 15m/20m/30m (with +/- 20cm tolerance) Custom length available, up to 70 meters maximum. | |
| Cable Type | 4.5mm Hybrid type with OM3 fiber and copper wire | |
| Jacket Outer Material | PVC/TPU(Custom) | |
| Cable W eight TBD | Cable W eight TBD | |
| Cable Color TBD | Cable Color TBD | |
| Differential Input | 100 ohm (typ) | |
| Power Consumption | 250mW (max) | |
| Power Supply | Non external power required | |
Extreme Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.5 | 5.5 | V |
| Working Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Storage Humility | Hs | 10 | 80 | %RH |
Recommended Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.75 | 5.25 | V |
| Working Temperature | Top | 0 | 50 | °C |
