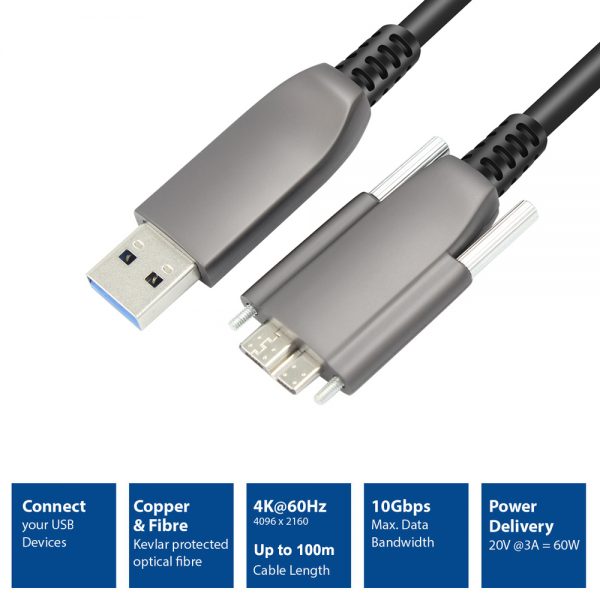

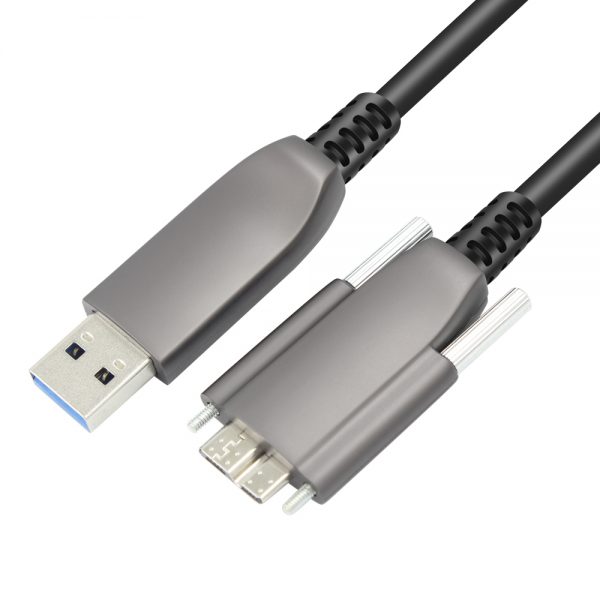

Hybrid USB 3.1 Gen 2 AOC-Active Optical Cable-Type A to Micro B-10m(33ft)

  • USB 3.1 Gen 2 for a data/video transfer up to 10Gbps
  • Type-A to Micro-B, length up to 100m
  • Supports USB 3.0 @ 5Gbps
  • DisplayPort Alternate Mode support up to 4K @ 60Hz
  • Support 5V 900mA max
Categories: , , Tags: , , , ,

The BUBC-31AMBM-XXX serires Hybrid USB 3.1 Gen 2 AOC-Active Optical Cable-Type A to Micro B-10m(33ft) are also called USB AOC Cable,USB Active Optical Cable,Hybrid USB AOC,USB 3.1 AOC,USB 3.1 Active Optical Cable.

By utilizing BONES’ unique AOC+™ technology and high quality hybrid optical fiber cable(4 Fiber & 7 Cooper) , it is fully compliant with Super-Speed USB electrical specifications and designed as perfect solution to enable conversion between input signals(USB type-A devices) and output signals(USB Micro-B devices) over long distances up to 100 meters(lengths can be customized) without data/video/power loss.

Supports data/video transfer up to 10Gbps, a max. video resolution of 4K @ 60Hz and 60W Power Delivery. The cable has a Kevlar protected fiber and is suitable for sensitive applications due to low RFI/EMI. Ideal for a completely new range of applications, such as long-distance industrial and security cameras, Industrial and Medical machine control and High-Definition surveillance.

Highlight Features:

  • USB 3.1 Gen 2 for a data/video transfer up to 10Gbps
  • Supports USB 3.0 @ 5Gbps
  • DisplayPort Alternate Mode support up to 4K @ 60Hz
  • Support 5V 900mA max
  • Downwards compatible with USB USB 3.0/USB 2.0/USB 1.1
  • Extend USB 3.0 super speed devices up to 100 meters (330ft)
  • Extend USB 2.0 super speed devices up to 50 meters (115ft)
  • No need for extra power charging or supply
  • Patented AOC hybrid-cable with only 5 mm bend radius
  • Hybrid fiber/copper design with Kevlar protected fiber
  • Highly resistant to RFI/EMI thus suitable for sensitive applications
  • Plus and Play
  • Customized length available

Applications:

  • Industrial Control
  • Digital Signage
  • Home Network Integration
  • Medical Device Connectivity
  • KVM Extension
  • Remote Desktop USB 3.0 Connections
  • Security: web camera, access control
  • USB 3.0 Devices Sharing: print, scan, storage

Technical Details:

Specifications Details
Connector A USB 3.1 Type-A Male
Connector B USB 3.1 Micro-B Male
Plating Gold plated, long-life design
Voltage 5V 900mA (Max.)
Cable Hybrid Cable-OM3 Fiber+2Copper Core
Protocols Supported USB 3.1/3.0/2.0/1.1
Max Data Rate 10Gbps,5Gbps
Consumption 250mw
Max Length 100m (328ft)
Cable Diameter 4.2mm
Minimum Bend Radius 5mm
Tensile Strength 100N/200N
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Product Datasheet Download
