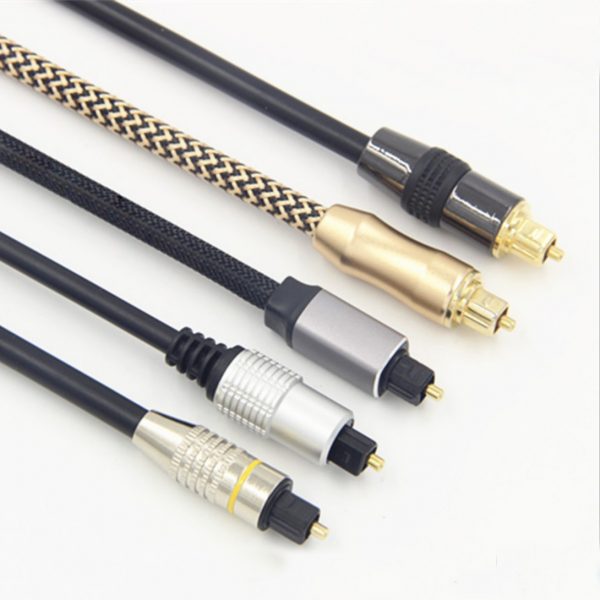

TOSLink Optical Digital Audio Cable SPDIF
Key Features:
- Toslink optical connectors at both ends
- Heavy 5.0mm jacket helps prevent cable damage and provides additional strain relief
- Molded strain relief reduce stress where cable and connectors meet
- Gold-plated ferrule prevents corrosion and provides for maximum protection of the fiber tip
- Precision polished fiber tips for maximum signal transfer (includes tip protectors)
- Toslink connectors at both ends • RoHS Compliant • Lifetime Warranty
TOSLINK Optical Audio Cables – Digital SPDIF Audio Cable-Can be customed
TOSLINK is the abbreviation of Toshiba Link. It is also a standard optical digital audio interface. It is widely used by Japanese manufacturers on CD and MD machines. It is used to transmit digital audio signals (left and right or multi-channel) through a kind of optical conductor, using light as carrier between various devices. TOSLINK can use plastic optical fibers as audio jumpers. PMMA core plastic fibers with diameter of 1.0 mm and numerical aperture (NA) of 0.5 are commonly used. The sheath is (flame retardant) PVC. The color of the sheath is 2.2 mm in black, red and blue; 4.0 mm; 5.0 mm; 6.0 mm, and the length of jumper is usually less than 50 meters.
Toslink optical cables provide full digital audio for electronic equipment. Toslink works by sending pulses of red light through the cable producing hi fidelity sound to a home theater, audio device or gaming console. These Toslink cables feature a fully molded connector with a strain relief boot to ensure a superb connection and long lasting cable life.
Features:
- Support 5.1/7.1 digital surround sound and uncompressed lossless PCM audio.
- Standard Length: 0.5meter(.15ft),1 meter (3ft),2 meter (6ft),2.5meter(8ft),3 meter (10ft) ,12ft/15ft/20ft/25ft/30ft/35ft/50ft/65ft/75ft/100ft/130ft
- Connector A: Toslink Male
- Connector B: Toslink Male
- Connector Finish: Gold Plated
- Low-loss core ensures low distortion
- Ultra-flexible PVC jacket
- Strain relief boots
- Packing: Polybag (Customizable)
Technical Specifications
|
Parameter
|
Unit
|
Numerical Value
|
| Core Diameter |
mm
|
Φ1.0
|
| Core Material | — |
Low-Loss PMMA
|
| Overall Diameter | mm | Φ7.0；Φ2.2mm-10.0mm |
| Jacket Material | — | PE/PVC/Woven web |
| Outer Jacket Color | — | Black (Can be customized) |
| Attenuation | dB/km | ≤180 |
| Bending Radius | — | 10 x Core Diameter |
| Numerical Aperture | NA | 0.5 |
| Durability | Times | 2000 |
| Splice Loss | dB | <0.5 |
| Working Temperature | ℃ | -40℃-+75℃ |
| Storage Temperature | ℃ | -40℃-+75℃ |
| Certification | — | RoHS、REACH、UL |
| Tensile Strength | KG | ≥5KG |
 |
Perfect solution for audio installations where space is tight or limited |
|
Bones Digital Optical Audio Cable build with 360 Degree swivel adjustable right angle, Ideal for audio installations where space is tight or limited. The rotating head works better for small spaces between wall and devices, like connecting a close wall mounted tv to your soundbar.
Quality 90 Degree TV Optical Audio Cable & Digital Optical Cable
|
|
|
|
|---|---|---|
360 Degree Free-Rotating Toslink PlugThe 90-degree plug rotates 360 Degree so you can have this optical cord going in any direction you want and minimize any bends in this optical sound cable. |
Fiber Optics Signal TransferToslink cable with fiber optic core transferred signal by light source which protects against RFI & EMI interference. Perfect for uncompressed PCM audio, compressed 5.1 to 7.1 surround sound systems including Dolby Digital Plus, DTS-HD High Resolution and LPCM. |
Long Run SolutionTested for Long Run Optical Audio Cable Use. No delay, No signal loss. Cable Lengh available in 1.5ft/3ft/6ft/8ft/10ft/12ft/15ft/20ft/25ft/30ft/35ft/50ft/65ft/75ft/100ft/130ft |
|
|
|
|
|---|---|---|
|
For sound bars(Vizio, Sony, Samsung, LG, Bose, Sharp, Philips, Polk, Yamaha), TV(Vizio, Samsung, Apple, LG, Sharp, Sony).etc with Toslink (S/PDIF, optical) ports |
For Game consoles/PlayStations(PS3, PS4, Xbox One, Xbox One S,XBox 360, Sony PlayStation), etc with Toslink (S/PDIF, optical) ports |
For your optical audio splitter. For CD/DVD/Blu-Ray players, home/audio theater receivers, preamplifiers,digital satellites, audio processors or digital-to-analog converters (DACs), etc with Toslink (S/PDIF, optical) ports |
|
|
|
|
|---|---|---|
|
Find optical audio OUT on your TV and optical audio IN on your soundbar. Insert one end of the optical cable to the TV (optical OUT) and the other into the soundbar (Optical IN). Note: Remove the protective cover on the ends of the cord before use. |
Select the DIGITAL AUDIO OUT (OPTICAL) output. Different TVs may display different setting words. Choose Digital or Optical or similar words in the sound setting. |
Optical cables have a red light at both ends that ensure the connectivity and if you are seeing the red light, that means you have the connection at both end and the cable should be working fine. |
