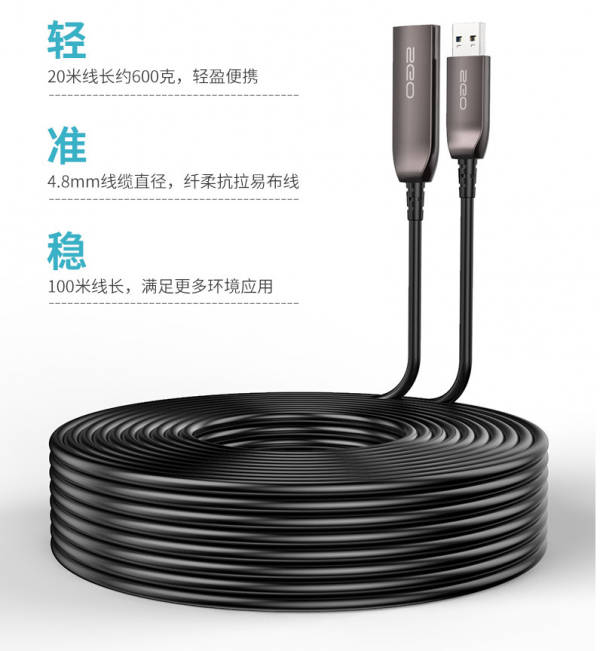

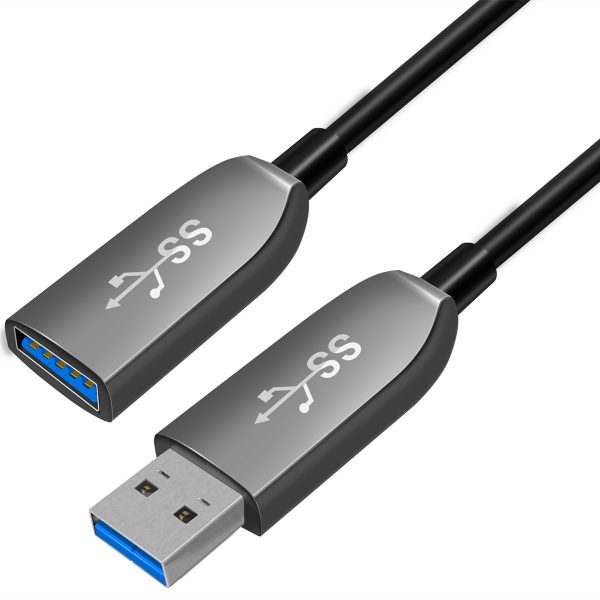

Hybrid USB 3.0 AOC Active Optical Fiber Extension Cable AM to AF up to 100 meters(330ft)

  • USB 3.1 Gen 2 for a data/video transfer up to 10Gbps
  • Type-A Male to Type-A Female, length up to 100m
  • Supports USB 3.0 @ 5Gbps
  • DisplayPort Alternate Mode support up to 4K @ 60Hz
  • Support 5V 900mA max

The BUBC-31AMAF-XXX Hybrid USB 3.0 AOC Active Optical Fiber Extension Cable are also called USB 3.0 AOC Cable, USB 3.0 Active Optical Cable, USB 3.0 Fiber Extension Cable, USB 3.0 Optical Fiber Cable, USB 3.0 Extension Cable.



By utilizing BONES’ unique AOC+™ technology and high quality hybrid optical fiber cable(4 Fiber & 7 Cooper) , it is fully compliant with Super-Speed USB electrical specifications and designed as perfect solution to enable conversion between input signals(devices with USB type-A Female connection) and output signals(devices with USB type-A Male connection) over long distances up to 100 meters(lengths can be customized) without data/video/power loss.



Supports data/video transfer up to 5Gbps, a max. video resolution of 4K @ 60Hz and 60W Power Delivery. The cable has a Kevlar protected fiber and is suitable for sensitive applications due to low RFI/EMI. Ideal for a completely new range of applications, such as long-distance industrial and security cameras, Industrial and Medical machine control and High-Definition surveillance.



Highlight Features:

  • USB 3.0 for a data/video transfer up to 5Gbps
  • Support 5V 900mA max
  • Downwards compatible with USB USB USB 2.0/USB 1.1
  • Extend USB 3.0 super speed devices up to 100 meters (330ft)
  • Extend USB 2.0 super speed devices up to 50 meters (115ft)
  • No need for extra power charging or supply
  • Patented AOC hybrid-cable with only 5 mm bend radius
  • Hybrid fiber/copper design with Kevlar protected fiber
  • Highly resistant to RFI/EMI thus suitable for sensitive applications
  • Plus and Play
  • Customized length available

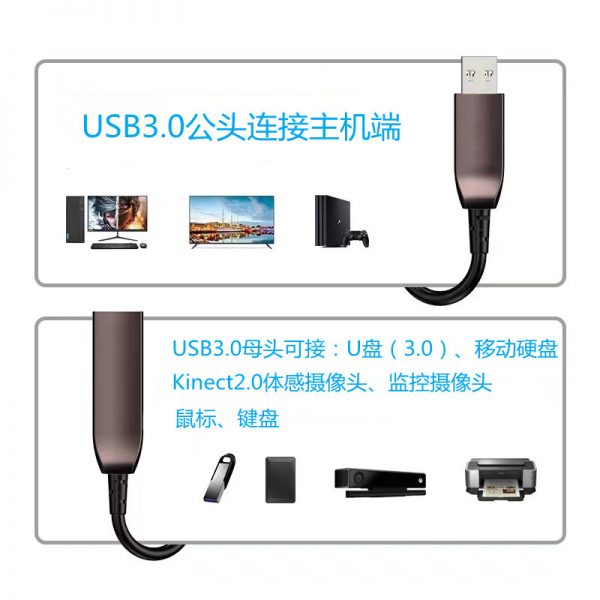

Applications:

  • Industrial Control
  • Digital Signage
  • Home Network Integration
  • Medical Device Connectivity
  • KVM Extension
  • Remote Desktop USB 3.0 Connections
  • Security: web camera, access control
  • USB 3.0 Devices Sharing: print, scan, storage

Technical Details:

Specifications Details
Connector A USB 3.0 Type-A Male
Connector B USB 3.0 Type-A Female
Plating Gold plated, long-life design
Voltage 5V 900mA (Max.)
Cable Hybrid Cable-OM3 Fiber+2Copper Core
Protocols Supported USB 3.0/2.0/1.1
Max Data Rate 5Gbps
Consumption 250mw
Max Length 100m (328ft)
Cable Diameter 4.2mm
Minimum Bend Radius 5mm
Tensile Strength 100N/200N
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Product Datasheet Download

Feel free to contact us for details
