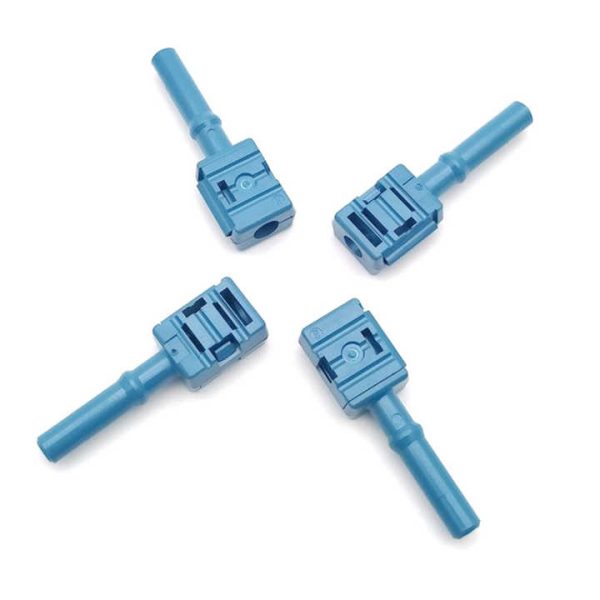

HFBR 4533Z Versatile Link Simplex POF Cable Connector

  • -Use with 1.0/2.2 mm Plastic Optical Fiber-POF Cable
  • -Fully Compatible with All Versatile Link Connectors, Transceivers & Components

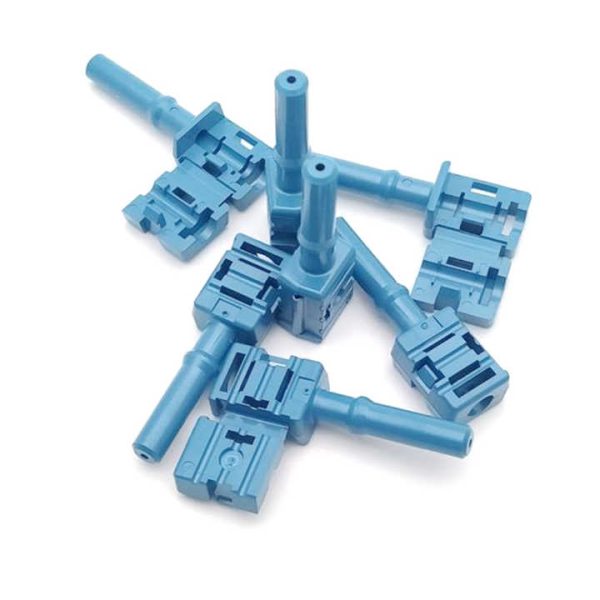

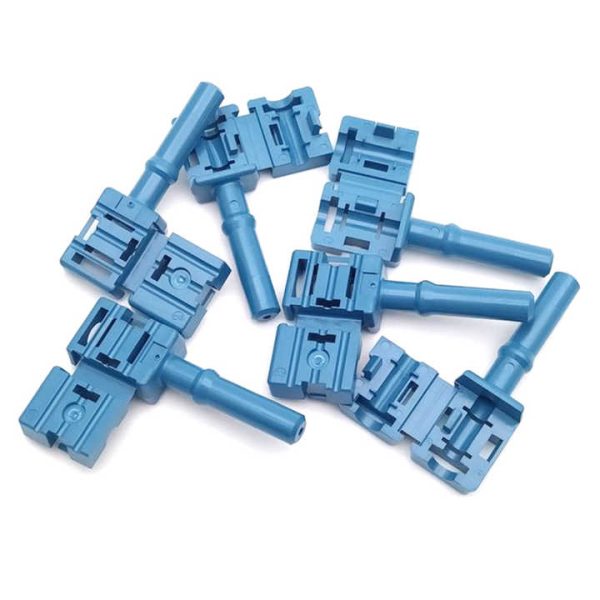

  • -Clamshell Design for Retention onto Fiber Jacket, No Crimp Tool Necessary
  • -Material: Flame-Retardant VALOX
  • -UL 94 V-0 Compliant, File E121562
  • -RoHS Compliant

HFBR-4533Z

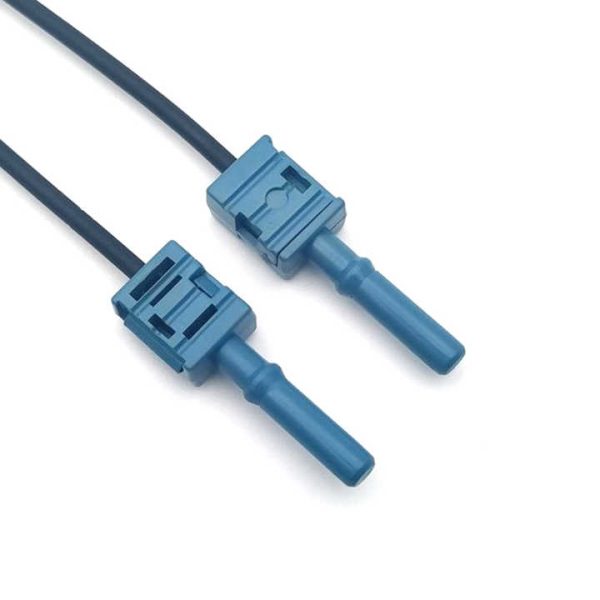

Broadcom/Avago Plastic Optical Fiber(POF) Cable Connector – Blue Simplex,non-latching,no-crimp,RoHS Compliant-1.0 mm core/2.2 OD jacket POF.

Broadcom Avago’s plastic fiber connectors for POF patchcords are low-cost for polymer optical fiber (POF), which are compatible with any versatile link series transmitters and receivers. Four connector styles are available for termination of plastic optical fiber: simplex, simplex latching, duplex and duplex latching. All connectors provide a snap-in action when mated to Versatile Link components.

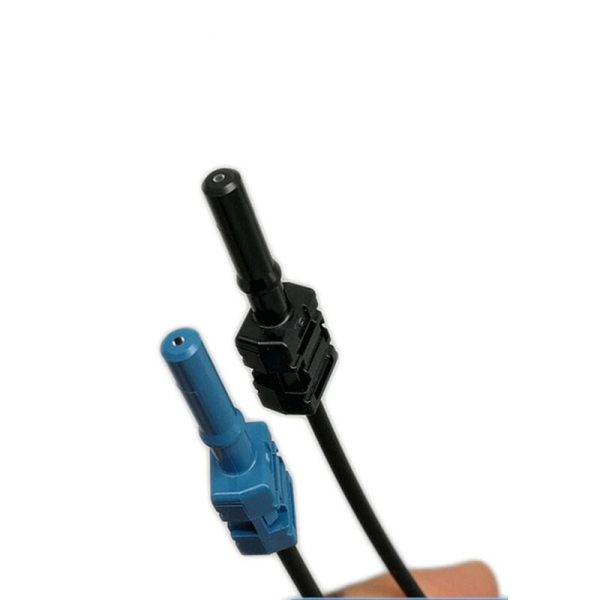

Simplex connectors are color coded to facilitate identification of transmitter and receiver connections. Duplex connectors are keyed so that proper orientation is ensured during insertion. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive (see Plastic Connectoring Instructions for more detail). The connectors are made of a flame retardant VALOX UL94 V-0 material (UL file # E121562).

Technical Specifications:

Product Attribute Attribute Value
Manufacturer: Broadcom Limited
Product Category: Fiber Optic Connectors
RoHS: Details
Port Type: Simplex
Mode: Singlemode
Color: Blue
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Packaging: Bulk
Body Material: Plastic
Brand: Broadcom / Avago
Product Type: Fiber Optic Connectors
Factory Pack Quantity: 500
Subcategory: Fiber Optic
Unit Weight: 0.031993 oz

Applications

  • Fast Ethernet
  • Industrial Data Links for Factory Automation & Plant Control
  • Intra-System Links, Board-to-Board, Rack-to-Rack
  • Medical Instruments
  • High Voltage Isolation
