TOSHIBA TOCP 100 Fiber Optic Cable Assemblies

Length Customizable TOSHIBA TOCP100 Fiber Optic Cable Assemblies

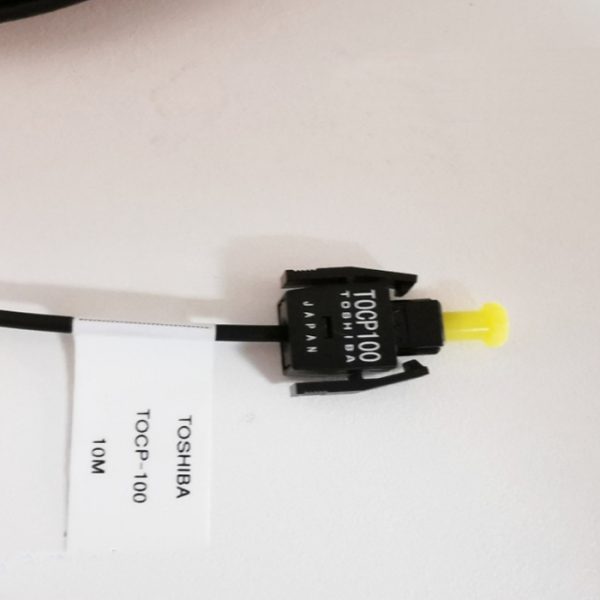

The TOSHIBA TOCP100 fiber optic cable is an pee-assemblied optical fiber cable with 2 connectors TOCP100.  The length can be customized from 0.5m to 100m. This optical fiber TOCP 100 is fitted with NUM CNC series 1000 or other CNC equipment.

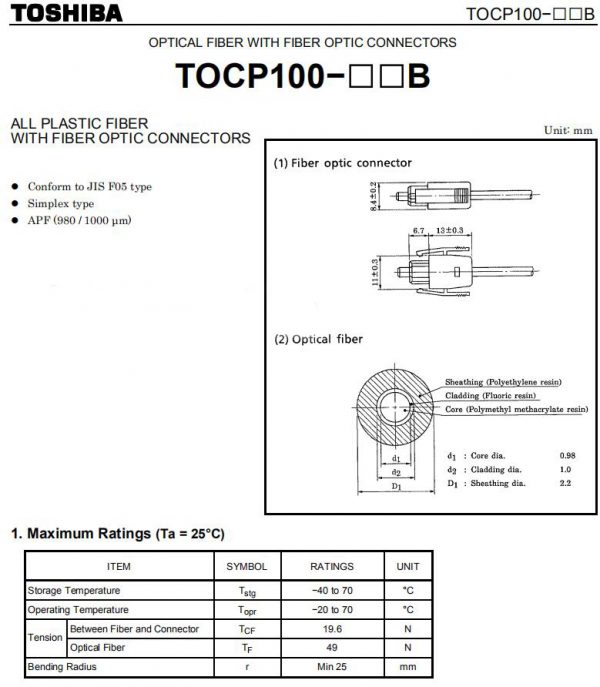

SPECIFICATION

Core Diameter: 1000 um

Wavelength Range: 525 – 650 um

Fiber Core Material: Plastic

Cable Length: 0.5 m ~100M as per request

Connector: Toshiba TOCP 100

Core Diameter: 1.0 mm

Cable Diameter: 2.2 mm

Fiber Core Material: PMMA

Jacket Sheath Material: Black PE/PVC

Working Temperature: -55~85 ℃

APPLICATIONS

–Data transmission and industrial automation and bus systems

–Industrial robots, intelligent system and servo system

–Communication exchange systems

–Digital multimedia systems

–Medical sensing system

–Power system, etc.

KEY FEATURES

–Anti-electromagnetic interference and electromagnetic radiation

–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission

–High temperature and low temperature(-40 to 70)

–Easy to install, needless of maintenance

–Plastic optical fiber is not conductive, can share the power transmission pipeline

–Long-range power supply

–Accord with the Toshiba universal

Bonestec, earlier known as Bones Electronics Co., Ltd(BEC), has been dedicated to low-loss PMMA plastic optical fiber( POF) cable R&D and manufacturing since 2013. As time passes by, Bones built production lines for various fiber optic cable polishing, termination and pre-assembly to satisfy customers’ various demands.

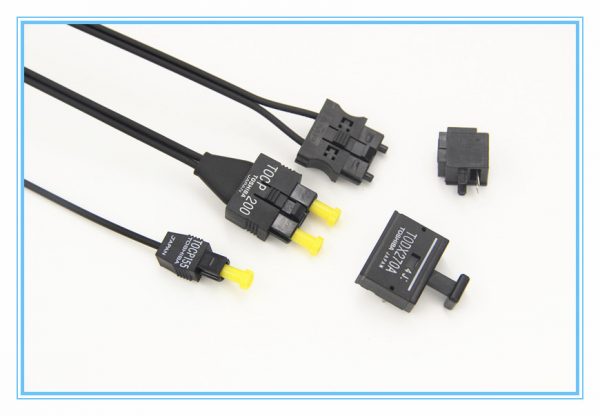

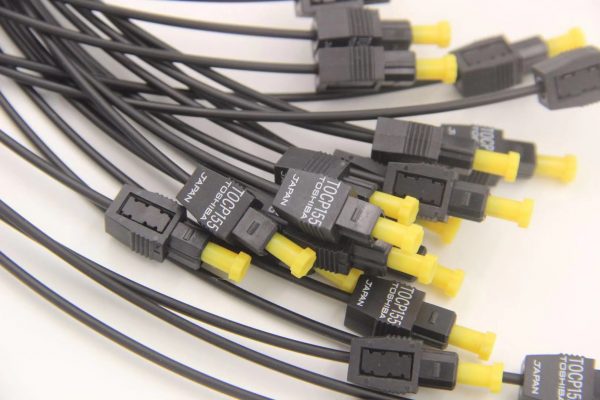

Bones’s Toshiba TOCP Fiber Optic Cable Assemblies covers full range of Toshiba TOCP fiber optic connectors and cable assemblies including TOCP100, TOCP100X, TOCP150, TOCP151, TOCP 200, TOCP200Q, TOCP201Q, TOCP255, TOCP255P, TOCP255K, TOCP255PK, TOCP 200K, C08I 5, TOCP 172, F05 connectors and various plastic fiber optic cable assemblies at customized length ranging from 0.5m to 100m.

Our Toshiba TOCP fiber optic connectors and cable assemblies market coverage extends all across the world including Europe, North & South America, Asia and Middle East. Bonestec has long-standing commitment in delivering superior products, solutions and services to our customers. Thanks to the Multi-fibers Engineering Excellence, our customers have been fulfilling their various increasing cabling needs in this bandwidth-hungry era at an effective cost and prompt speed.
