DisplayPort 1.4 8K Active Optical Cable-AOC 32.4Gbps 8K 60
Highlight Features:
- Extend full 7680 x 4320 (8K) at 60Hz video signals up to 30m (98.4ft)
- Fully supports DisplayPort 1.4 spec, including DPCP, 32.4Gbps bandwidth and more
- PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
- Practically Zero EMI/RFI profile for flawless performance
- Hybrid Fiber/Copper design requires no external power
- Supports HDR / EDID / DDC / CEC
DisplayPort is a widely adopted high-definition digital video and audio port standard, developed by the Video Electronics Standards Association (VESA). Initially introduced as a replacement for VGA and DVI ports on computers, DisplayPort remains popular due to its free licensing. Many prominent companies, including AMD, Intel, Dell, and HP, have embraced and integrated DisplayPort into their products. While HDMI enjoys widespread usage, DisplayPort serves as a valuable complement, offering distinct advantages and features in the realm of high-definition multimedia connectivity.

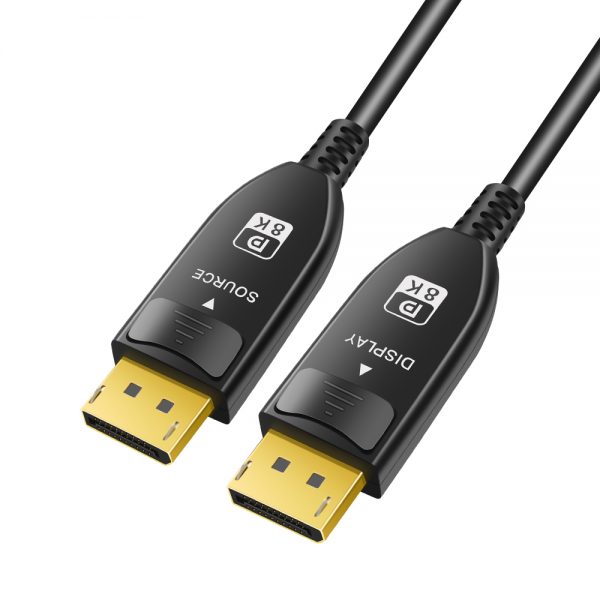

The BDDC-21AA-XX serires DisplayPort 1.4 8K Active Optical Cable-AOC provide an ideal solution for various applications requiring uncompromised Ultra High Definition video at extended distances. With a transmission range of up to 150 meters, these cables flawlessly transmit uncompressed, full Ultra HD 8K video signals. The all-in-one cable design eliminates the need for additional components, ensuring a plug-and-play experience without signal loss or degradation. Simply connect the cable between your source and display, and enjoy seamless audio/video transmission. The cable is unidirectional, connecting the source side to the source and the display side to the display..
Highlight Features:
- Extend full 7680 x 4320 (8K) 8K@60Hz , 4K@120Hz, 4K@144Hz video signals up to 150m (492ft)
- Fully supports DisplayPort 1.4 spec, including DPCP 1.4/2.2 , bandwidth up 8.1 Gbps per chanel, 32Gbps in total
- PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
- Up to 32 audio channels with 1536 Hz sampling rate
- Latching connectors to secure connection
- Plug and play, no software to install.
- Hybrid construciton combines copper and fiber for reliable performance. No external power is required, simplifying installation and reducing cable clutter.
- 4.8 mm flexible outer diameter, allowing for easy routing and installation
- Practically Zero EMI/RFI profile for flawless performance, making it suitable for sensitive applications where signal integrity is crucial.
- Custom length,logo,packaging available;
Applications:
- Digital signage
- LED signs & monitors for stadiums,hospitals,shipping malls
- Medical imaging equipment
- Airport boarding video information system
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
- Radio and TV station
- Video conference equipment
- Security monitoring system
Technical Specifications:
| SPECIFICATIONS | |
| Connector A | DisplayPort Type A Male |
| Connector B | DisplayPort Type A Male |
| Cable | 4-core Fiber and 8-core Copper Hybrid Cable |
| Protocols Supported | DisplayPort 1.4, HBR3, HDCP 1.4, HDCP 2.2 |
| Length | Up to 100m (328ft) |
| Cable Diameter | 4.8mm |
| Jacket | PVC, RoHS Directive-compliant |
| Video Resolution | 8K@60Hz,4K@144Hz |
| Bandwidth | 32.4Gbps |
| Color Depth | 12 bit Max |
| Color Space | 4:4:4 Max |
| Minimum Bend Radius | 48mm |
| Power Supply | No external power supply required, plug and play |
Extreme Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.5 | 5.5 | V |
| Working Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Storage Humility | Hs | 10 | 80 | %RH |
Recommended Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.75 | 5.25 | V |
| Working Temperature | Top | 0 | 50 | °C |
Product Datasheet Download
Feel free to contact us for details
