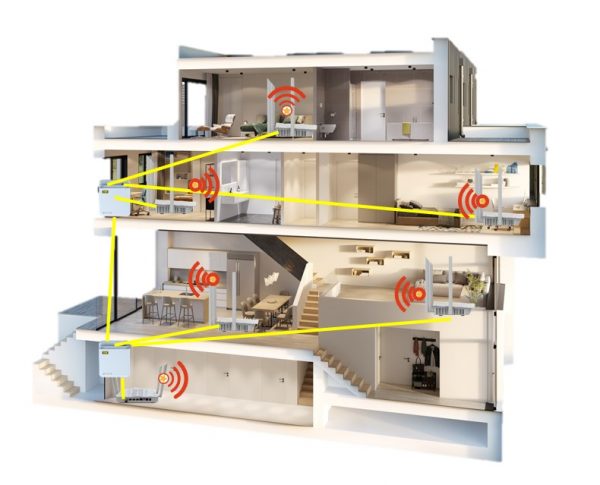

The revolutionary Thermal Adhesive Coated (TAC) Fiber System offers a cutting-edge solution for seamless, fast, and flexible fiber cable installation for FTTX applications including Fiber to the Home (FTTH) , Fiber to the Desk (FTTD) and Fiber to the Room (FTTR) within homes and businesses.
The revolutionary Thermal Adhesive Coated (TAC) Fiber System offers a cutting-edge solution for seamless, fast, and flexible fiber cable installation for FTTX applications including Fiber to the Home (FTTH) , Fiber to the Desk (FTTD) and Fiber to the Room (FTTR) within homes and businesses.

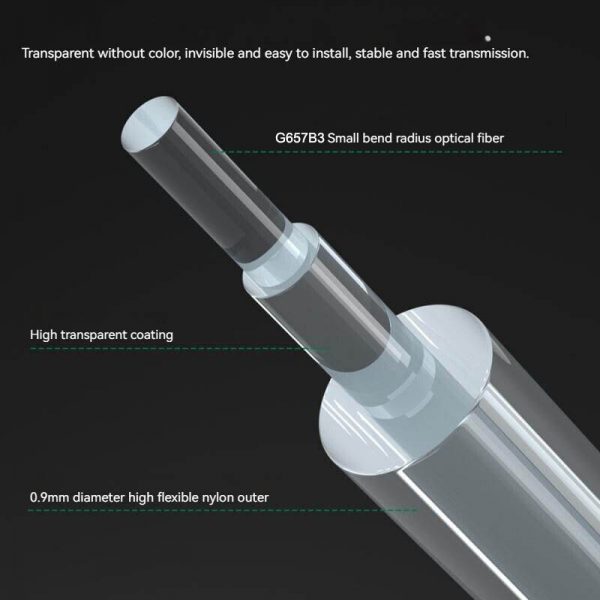

Designed to ensure a seamless, fast, flexible and nearly invisible installation of fiber cable, this innovative TAC invisible fiber system utilizes an unique handheld tool and 900-micron fiber cable with integrated adhesive, enabling a rapid and consistent method for deploying fiber throughout buildings with minimal visibility.

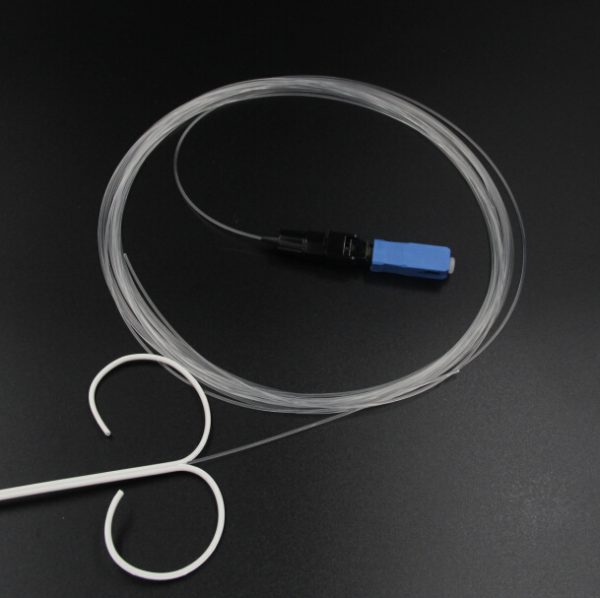

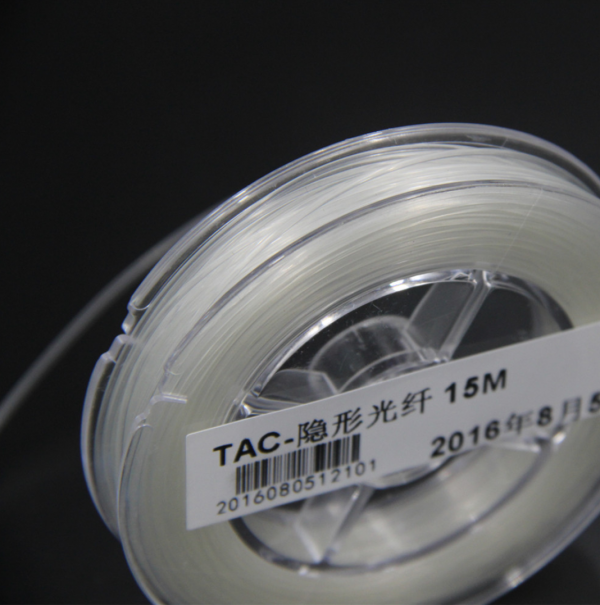

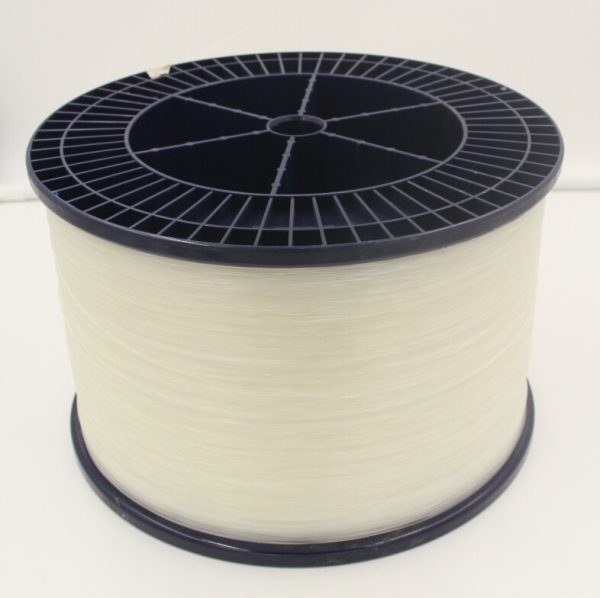

Mainly used as indoor wiring access cable for FTTX applications including Fiber to the Home (FTTH) , Fiber to the Desk (FTTD) and Fiber to the Room (FTTR) network. The TAC Fibers is optional for selling on plastic spool reel with length up to 200meters or matched with connectors for per-assembling or field assembling.
Cable Dimensions | |
Cladding Diameter | 125 .0±0.7 μm |
Cable dimension | 0.9±0.05mm |
Outer sheath thickness | ≥0.25mm |
Cable weight | 1kg/km |
Cable Parameters | |
Attenuation | ≤0.4dB/km@1310nm, ≤0.25dB/km@1550nm |
Macrobending Loss | 5mm 1round, Additional loss≤0.25dB@ 1550nm, ≤0.45dB@ 1625nm |
Tensile Failure Force | ≥65N |
Tensile | Short term 20N , Additional loss≤0.03; Long term 5N Additional loss≤0.03 |
Crush | Short term 500N/100mm, Long term 100N/100mm |
Impact | 0.5J 3times , No visual crack of cable sheath, Additional loss≤0.4dB@ 1550nm |
Repeat Bending | 5N 200times , No visual crack of cable sheath, Additional loss≤0.4dB@ 1550nm |
Torsion | 5N ± 180。20times, No visual crack of cable sheath, Additional loss≤0.4dB@ 1550nm |
Minimum-bending Radius | Operation 5mm, Installation 10mm |
Temperature Cycling | – 10~50C, 2cycles , Additional loss≤0.2dB/km |
Environmental Protection | Operation 5mm, Installation 10mm |
Temperature Cycling | RoHS compliant |
Cable Environmental Performance | |
Operation Temperature | -30℃~50℃ ( -22℉~122℉) |
Storage Temperature | -40℃~75℃ (-40℉~167℉) |
Installation Temperature | -10℃~200℃ (-14℉~392℉) |
