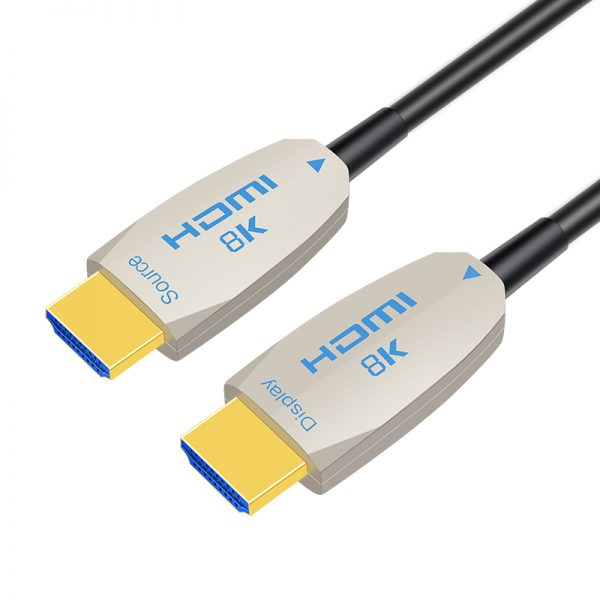

8K Active Optical AOC HDMI 2.1 Fiber Cable
02/09/2022
1 in 2 out SPDIF Digital Optical Toslink Cable Splitter
08/11/2022
4K Active Optical Fiber HDMI 2.0 Cables
- Unparalleled 8K 60Hz definition;
- Maximum 240Hz ideal for immersive entertainment;
- Optical / Electrical solution for lossless transmission;
- 48Gbps bandwidth;
- Easy-grip zinc-alloy housing and gold-plated connectors

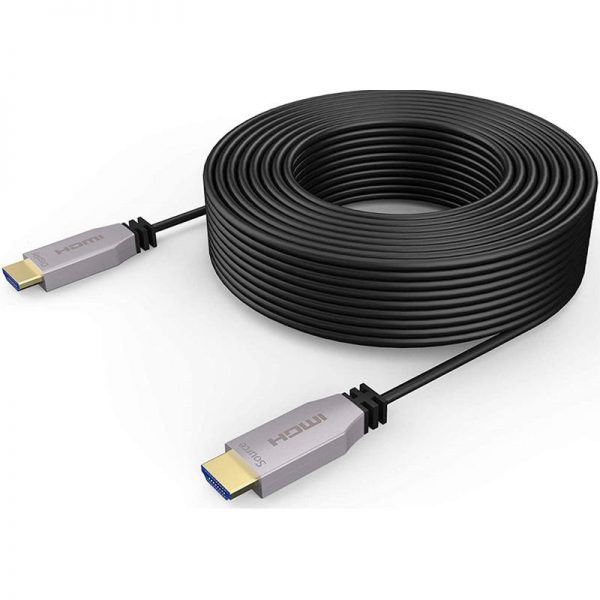

The BHDC-20-XX serires 4K Active Optical Fiber HDMI 2.0 Cables are also called 4K AOC HDMI Cable, 4K Fiber Optic HDMI Cable, 4K active fiber HDMI cable,4K HDMI fiber cable,4K active optical Cable.
They are made of high quality hybrid optical fiber cable(4 Fiber & 7 Cooper) with up to 18Gbps Ultra High Speed and 4K@60Hz resolutions signals without signal loss. By utilizing BONES’ unique AOC+™ technology, the 4K HDMI Fiber AOC Cables enable conversion between input signals and optical signals for optimum high bandwidth data transmissions and 100 meters maximum transmission length (30m for supporting eARC).
This EMI-resistant optical cable fully supports 18Gbps signal bandwidth and 4K@60Hz YUV 4:4:4 video resolution. It is the ideal solution for extending the reach of your digital signage in various settings, such as Blu-ray players, set top boxes, game consoles, monitors for large shopping malls and hospital facilities etc.The optical solution ensures the mass signal will be transmitted in a lossless way even long distance.
Highlight Features:
- AOC (Active Optical Cable) Fiber/Copper inner conductor material and 24K gold-plated connectors provide maximum video clarity;
- Supports HDCP2.2 two-way EDID and HDCP communication;
- Supports 4096 x 2160, 4K (60P), 3D full HD transmission distance up to 100 meters;
- Energy saving, low power consumption (max. 250mW), no extra power supply required;
- Transmission rate up to 6Gbps/channel, total bandwidth can be 18Gbps;
- Plug-and-play – no software or setting required;
- RF/EMI free for clear signal transmission;
- Easy to carry and install with optical fiber cable;
- Up to 100m maximum length(30m max. for eARC );
- Custom length,logo,packaging available;
Applications:
- Digital signage
- LED signs & monitors for stadiums,hospitals,shipping malls
- Medical imaging equipment
- Airport boarding video information system
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
- Radio and TV station
- Video conference equipment
- Security monitoring system
Technical Specifications:
| Item | Description | |
| Units | Transmitter (Source) | Receiver ( Display) |
| HDCP | Support two-way EDID and HDCP communication | |
| Video Bandwidth | 6 Gbps/x 3Channel | |
| Supported
Resolution & Distance |
PC: WUXGA 4096 x 2160, maximum 100 meters(330 feet) HDTV : 480p, 720p, 1080i and 1080p color depth, 4K(60P), 3D: Full HD 4096 x 2160max. 100m | |
| O/E Converter | 4 channel 850 nm array | 4 CH GaAs PD array |
| Connector Type | HDMI type A | |
| Cable Type | Hybrid type with OM3 fiber and copper wire | |
| Cable Length | 15m/20m/30m (with +/- 20cm tolerance) Custom length available, up to 70 meters maximum. | |
| Cable Outer Diameter | 4.5mm | |
| Jacket Outer Material | PVC/TPU(Custom) | |
| Cable W eight TBD | Cable W eight TBD | |
| Cable Color TBD | Cable Color TBD | |
| Differential Input | 100 ohm (typ) | |
| Power Consumption | 250mW (max) | |
| Power Supply | Non external power required | |
Extreme Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.5 | 5.5 | V |
| Working Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Storage Humility | Hs | 10 | 80 | %RH |
Recommended Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.75 | 5.25 | V |
| Working Temperature | Top | 0 | 50 | °C |
Product Datasheet Download
