Hybrid USB-C 3.1 AOC-active optical fiber cable-type C to type-C
Right Angle USB-C AOC-Active Optical Fiber Cable Type-C to Type-C10 meters(33ft) - Image 2
Right Angle USB-C AOC-Active Optical Fiber Cable Type-C to Type-C10 meters(33ft) - Image 3
Right Angle USB-C AOC-Active Optical Fiber Cable Type-C to Type-C10 meters(33ft) - Image 4

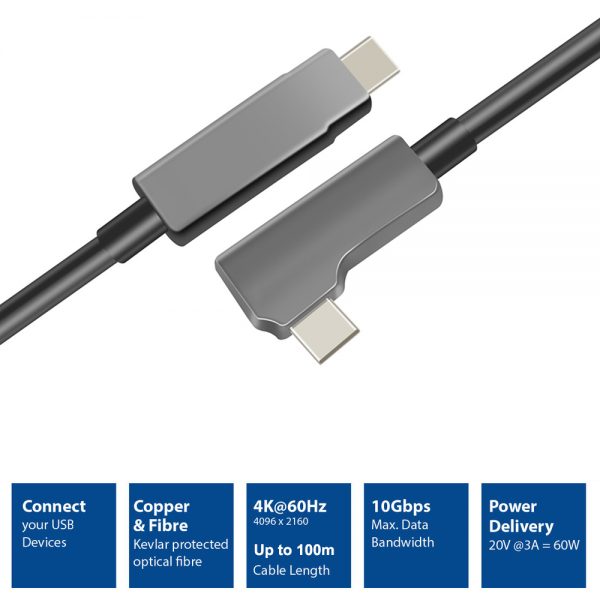

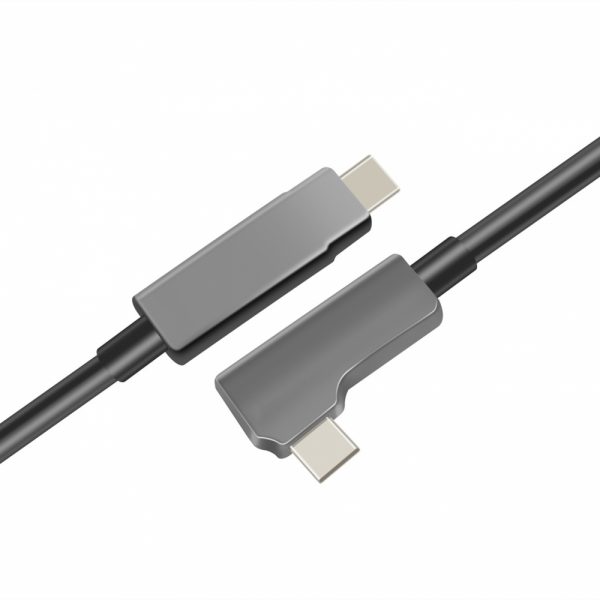

Right Angle USB-C AOC-Active Optical Fiber Cable Type-C to Type-C10 meters(33ft)

  • Right-angle USB-C connector that lets you connect to your device even in hard-to-reach areas
  • USB 3.1 Gen 2 for a data/video transfer up to 10Gbps
  • Type-C to Type-C, length up to 100m
  • Supports USB 3.0 @ 5Gbps
  • DisplayPort Alternate Mode support up to 4K @ 60Hz
  • Support 5V 900mA max
Categories: , , Tags:

The BUBC-31CC-RA-XXX serires Hybrid USB 3.1 Gen 2 type-C to type-C Active Optical Fiber Cables are also called USB AOC Cable,USB Active Optical Cable,Hybrid USB AOC,USB-C AOC,USB 3.1 type C Active Optical Cable.

By utilizing BONES’ unique AOC+™ technology and high quality hybrid optical fiber cable(4 Fiber & 7 Cooper) , it is fully compliant with Super-Speed USB electrical specifications and designed as perfect solution to enable conversion between input signals(USB 3.1 Gen 2 type-C devices) and output signals(USB 3.1 Gen 2 type-C devices) over long distances up to 100 meters(lengths can be customized) without data/video/power loss.

Supports data/video transfer up to 10Gbps, a max. video resolution of 4K @ 60Hz and 60W Power Delivery. The cable has a Kevlar protected fiber and is suitable for sensitive applications due to low RFI/EMI. Ideal for a completely new range of applications, such as long-distance industrial and security cameras, Industrial and Medical machine control and High-Definition surveillance.

Highlight Features:

  • Right-angle USB-C connector that lets you connect to your device even in hard-to-reach areas
  • USB 3.1 Gen 2 for a data/video transfer up to 10Gbps
  • Supports USB 3.0 @ 5Gbps
  • DisplayPort Alternate Mode support up to 4K @ 60Hz
  • Support 5V 900mA max
  • Downwards compatible with USB USB 3.0/USB 2.0/USB 1.1
  • Extend USB 3.0 super speed devices up to 100 meters (330ft)
  • Extend USB 2.0 super speed devices up to 50 meters (115ft)
  • No need for extra power charging or supply
  • Patented AOC hybrid-cable with only 5 mm bend radius
  • Hybrid fiber/copper design with Kevlar protected fiber
  • Highly resistant to RFI/EMI thus suitable for sensitive applications
  • Plus and Play
  • Customized length available

Applications:

  • Industrial Control
  • Digital Signage
  • Home Network Integration
  • Medical Device Connectivity
  • KVM Extension
  • Remote Desktop USB 3.0 Connections
  • Security: web camera, access control
  • USB 3.0 Devices Sharing: print, scan, storage

Technical Details:

SpecificationsDetails
Connector AUSB 3.1 Type-A Male
Connector BUSB 3.1 Micro-B Male
PlatingGold plated, long-life design
Voltage5V 900mA (Max.)
CableHybrid Cable-OM3 Fiber+2Copper Core
Protocols SupportedUSB 3.1/3.0/2.0/1.1
Max Data Rate10Gbps,5Gbps
Consumption250mw
Max Length100m (328ft)
Cable Diameter4.2mm
Minimum Bend Radius5mm
Tensile Strength100N/200N
Operating Temperature-20°C to 50°C (-4°F to 122°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Product Datasheet Download

Feel free to contact us for details
